Fabric

ERL supplies reinforcing fabric (mesh) in accordance with BS 4483:1998 & BS 4483:2005,
made from 98% scrap and 100% UK source materials. We supply a range of mesh including
A type, B type, Flying End, Eco and a range of sizes.

We also have the capability to offer bespoke designs if required.

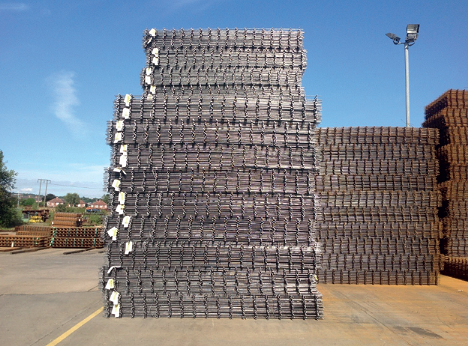

Standard, Flying End and Merchant Fabric is available from stock, please see tables below.

  • Square Mesh Fabric
  • Structural Mesh Fabric
  • Long Mesh Fabric
  • Flying End 400m Mesh Fabric
  • Flying End Structural Mesh Fabric
  • Merchant Fabric
  • Wrapping Mesh Fabric

If you have an enquiry please complete the form by clicking here and we will be in touch shortly.

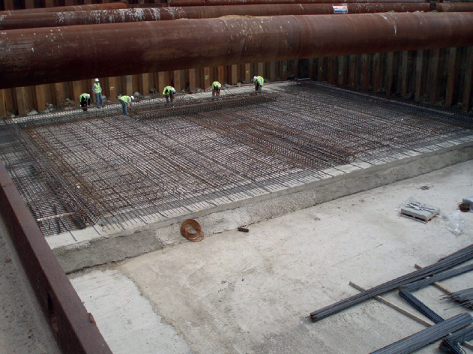

Carpet reinforcement solutions
ERL offers 3 Carpet reinforcement solutions:-
2 are welded solutions in 8mm to 40mm bar in lengths up to 15m.
1 non welded solution in 12 to 32 mm bar in lengths up to 12m.

If you have an enquiry please complete the form by clicking here and we will be in touch shortly.

Express Tables for Fabric

Square Mesh 4.8mtrs x 2.4mtrs (11.52sqm) - Type A

Square Mesh 4.8mtrs x 2.4mtrs (11.52sqm) - Type A

 Longitudinal WiresCross Wires
British Standard ReferenceSize (mm)Pitch (mm)Area (mm²/m)Size (mm)Pitch (mm)Area (mm²/m)Kg/m²Kg/Sheet
A393 10 200 393 10 200 393 6.16 70.96
A252 8 200 252 8 200 252 3.95 45.50
A193 7 200 193 7 200 193 3.02 34.79
A142 6 200 142 6 200 142 2.22 25.57
Structural Mesh 4.8mtrs x 2.4mtrs (11.52sqm) – Type B

Structural Mesh 4.8mtrs x 2.4mtrs (11.52sqm) – Type B

 Longitudinal WiresCross Wires
British Standard ReferenceSize (mm)Pitch (mm)Area (mm²/m)Size (mm)Pitch (mm)Area (mm²/m)Kg/m²Kg/Sheet
B1131 12 100 1131 8 200 252 10.90 125.57
B785 10 100 785 8 200 252 8.14 93.77
B503 8 100 503 8 200 252 5.93 68.31
B385 7 100 385 7 200 193 4.53 52.19
Long Mesh 4.8mtr x 2.4mtrs (11.52sqm) – Type C

Long Mesh 4.8mtr x 2.4mtrs (11.52sqm) – Type C

 Longitudinal WiresCross Wires
British Standard ReferenceSize (mm)Pitch (mm)Area (mm²/m)Size (mm)Pitch (mm)Area (mm²/m)Kg/m²Kg/Sheet
C785 10 100 785 6 400 70.8 6.72 77.41
C503 8 100 503 6 400 49.0 4.51 51.96
C385 7 100 385 6 400 49.0 3.58 41.24
Flying End 400mm Laps, Square Mesh 4.8mtrs x 2.4mtrs (11.52sqm) – Type A

Flying End 400mm Laps, Square Mesh 4.8mtrs x 2.4mtrs (11.52sqm) – Type A

 Long Wires (3.6mm)Cross Wires (2.0m)
Type/ReferenceSize (mm)Pitch (mm)No.ofSize (mm)Pitch (mm)No.ofKg/m²Kg/Sheet
A393M 10 200 393 10 200 393 6.16 44.35
A252M 8 200 252 8 200 252 3.95 28.44
A193M 7 200 193 7 200 193 3.02 21.74
A142M 6 200 142 6 200 142 2.22 15.98
Flying End 400mm Laps, Structural Mesh 4.8mtrs x 2.4mtrs (11.52sqm) Type B

Flying End 400mm Laps, Structural Mesh 4.8mtrs x 2.4mtrs (11.52sqm) Type B

 Longitudinal WiresCross Wires
British Standard ReferenceSize (mm)Pitch (mm)Area (mm²/m)Size (mm)Pitch (mm)Area (mm²/m)Kg/m²Kg/Sheet
B1131 Flying End 12 100 1131 8 200 252 9.58 110.40
B785 Flying End 10 100 785 8 200 252 7.20 82.90
B503 Flying End 8 100 503 8 200 252 5.27 60.70
Merchant Mesh – Square Mesh 3.6mtrs x 2.0mtrs (7.2sqm) – Type B

Merchant Mesh Square Mesh 3.6mtrs x 2.0mtrs (7.2sqm) – Type B

 Long Wires (3.6mm)Cross Wires (2.0m)
Type/ReferenceSize (mm)Pitch (mm)No.ofSize (mm)Pitch (mm)No.ofKg/m²Kg/Sheet
A393M 10 200 393 10 200 393 6.16 44.35
A252M 8 200 252 8 200 252 3.95 28.44
A193M 7 200 193 7 200 193 3.02 21.74
A142M 6 200 142 6 200 142 2.22 15.98
Wrapping Mesh 4.8mtrs x 2.4mtrs – D49

Wrapping Mesh 4.8mtrs x 2.4mtrs – D49

 Longitudinal WiresCross Wires
British Standard ReferenceSize (mm)Pitch (mm)Area (mm²/m)Size (mm)Pitch (mm)Area (mm²/m)Kg/m²Kg/Sheet
D49 2.5 100 49 2.5 100 49.0 0.77 8.87
